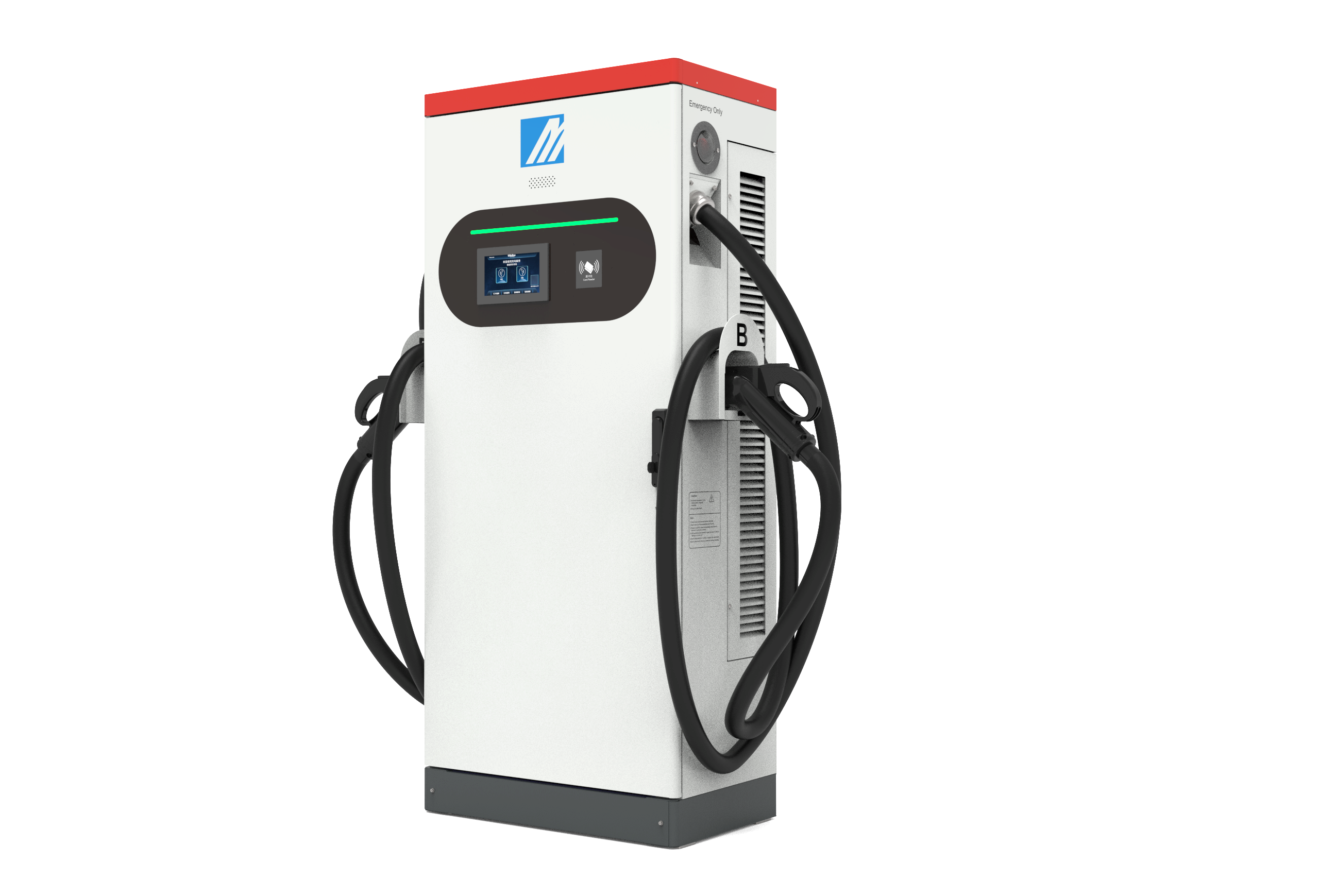

Core Product Features

Dual-Gun Independent Charging

2 guns operate independently, max 120kW/160kW rated power, 250A single-gun max current, meeting simultaneous charging needs

Wide Voltage Output

200~1000VDC output (300~1000VDC constant power range), compatible with most electric vehicles

Multiple Smart Start Modes

Scan code/VIN recognition/Plug and Charge/RFID card/Manual, suitable for unattended operation

High Energy Efficiency

Peak efficiency ≥95%, power factor ≥0.99, total harmonics ≤5%, low energy loss and grid impact

Intelligent Cooling System

Air-blast cooling with noise control, stable operation even in high-load scenarios

Remote Monitoring & Communication

Ethernet/4G communication, supporting remote monitoring, data collection and fault diagnosis

User-Friendly Operation

7-inch color touch screen, clear status display, simple operation, support for password management and parameter configuration

Comprehensive Safety Protection

Overvoltage/undervoltage, overcurrent, short circuit, insulation monitoring, emergency stop, and surge protection

Core Technical Parameters

Category Item Specification
Basic Parameters Rated Power 120kW / 160kW
Gun Quantity 2 (Independent Operation)
Cooling Method Air-blast cooling
Communication Interface Ethernet / 4G
HMI 7-inch color touch screen
Dimensions (W×D×H) 700mm × 450mm × 1730mm
Input Characteristics Input Voltage 380VAC±15%, 3 phase + N + PE
Frequency 50±1Hz
Power Factor ≥0.99
Output Characteristics Output Voltage Range 200~1000VDC (Constant power: 300~1000VDC)
Single-Gun Max Current 250A
Peak Efficiency ≥95%
Voltage Regulation Accuracy ≤±0.5%
Current Regulation Accuracy ≤±1% (≥30A); ≤±0.3A (<30A)
Peak-to-Peak Ripple ≤±1%
Current Imbalance ≤3%
Environmental Index Operating Temperature -20~+50°C
Storage Temperature -40~+75°C
Relative Humidity 5~90%RH (without condensation)
Altitude ≤2000m (no derating); >2000m, temp decreases by 1°C per 100m
Weight 250KG (with modules) / 270KG (with modules)

Installation & Maintenance Guidelines

Installation Requirements

  • Install on concrete or channel steel base (recommended height: 200mm)
  • Reserve sufficient operation space around the cabinet (follow manual dimensions)
  • Pre-embed cables with specified reserved lengths (A:660mm, B:590mm, C:470mm, N:530mm, PE:460mm)
  • Seal cable inlet with fireproof mud (thickness ≥20mm)
  • Ensure reliable grounding before power-on

Daily Maintenance

  • Check charging gun for damage, keep gun head dry and clean
  • Inspect cabinet casing for rust, water leakage and door lock condition
  • Verify touch screen display and indicator light functionality
  • Test emergency stop button and insulation resistance regularly
  • Clean dust from internal modules and air filters per cycle (15 days~6 months based on environment)

Operation Precautions

  • Prohibited to install/remove power cables with power on
  • Wear insulated gloves and protective shoes during operation
  • Do not unplug the gun during charging; unlock first after charging completion
  • Equip dedicated fire-fighting equipment near the charger
  • Only trained and qualified personnel can perform maintenance

Common Troubleshooting

Fault Code Fault Description Solution
1002 Insufficient account balance Check account balance via the platform
3003 Emergency stop button pressed Rotate the emergency stop button clockwise to reset; check related wiring
3004 System fan failure Inspect fan, drive circuit and speed control board
4000 AC input fault (overvoltage/undervoltage/phase loss) Check power grid condition and internal modules
5001 BCP message timeout (vehicle fault) Inspect CAN line, auxiliary power supply or vehicle condition

For full fault codes and solutions, refer to the User Manual V3.5 or contact technical support

Application Scenarios

Public Charging Stations | Highway Service Areas | Shopping Malls & Office Buildings | Logistics Parks

EV 4S Stores | Corporate Parking Lots | Residential Complexes | Airport & Port Terminals

Industrial Parks | Urban Public Transit Hubs | Outdoor Commercial Zones
